UL/ FM Wet Barrel Fire Hydrant American Standard Factory
- Model
- UL 246/ FM1511/ AWWA C503
Item specifics
- Certification
- UL/ FM
- Size
- 6"
- Body
- Ductile Iron
- Connection1
- Base flange as B16.1 Class 125
- Connection2
- Base flange as B16.5 Class 150, EN1092-2 PN16
- Pressure
- 250 psi
- Temperature
- -10°C to 80°C
- Surface
- FBE coating AWWA C550
Review
Description
Specification

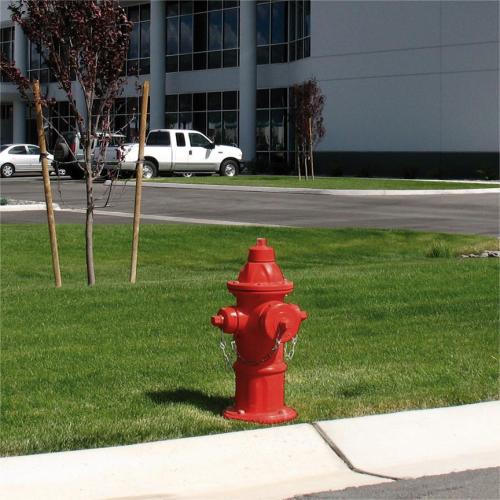

Wet Barrel Fire Hydrant American Standard
Wet barrel fire hydrant is a fire hydrant used in places where the climate is mild and no danger of freezing weather. In water distribution pipe network, the fire hydrant system is always filled with water.
Example Size
Note: Some of the main specifications are shown below, please contact us for more details.
Inlet Flange | Way of outlet |
Hose nozzie outlet | Pumper nozzle outlet | Working Pressure (psi) |
6" | 2-way | (2) 2 1/2" NH | / | 250 |
6" | 2-way | (1) 2 1/2" NH | (1) 4" NH | 250 |
6" | 3-way | (2) 2 1/2" NH | (1) 4" NH | 250 |
6" | 3-way | (2) 2 1/2" NH | (1) 4 1/2" NH | 250 |
6" | 3-way | (2) 2 1/2" NH | (1) 5" Storz | 250 |
